Kee^® Step Mini Step Over

A range of modular, off-the-shelf step overs that help your team navigate obstructions on a roof.

Overview Benefits Gallery

Small in size, big on safety

Roof surfaces can be extremely dangerous with varying levels, uneven surfaces, and multiple obstructions that need to be overcome. Kee^® Step Mini Step Overs create a safe way to cross roof obstructions, such as pipework, plant equipment, and conduits. Suitable for use on a variety of roof types where there are changes in roof levels, our step overs create a safe, anti-slip, level walking surface onto and across roofs.

Key Features

Safely Get Over Obstacles

A simple way to traverse obstacles such as pipework, cable trays, low level walls, and changes in level.

Range of Sizes

Designed for modern roof types including trapezoidal, profile, composite, or built up and standing seam metal roofs.

Suitable for All Roof Types

The system can be used on membrane, asphalt, concrete, and PVC roof finishes.

Standard Kit Formats

Comes in a kit form in standard sizes and can be quickly installed to create a safe working area.

Non-slip Treads

Steps and a traverse options are made from nylon or aluminium treads with enhanced slip resistance.

High Fire Rating

The nylon treads are fire rated to Class HB of UL94 and will not present a fire risk.

No Welding Needed

Made from tubular fittings and standard modules so it can be installed on site without any welding.

Long Lasting

Available in aluminum or galvanised steel for long-lasting protection, corrosion resistance and strength.

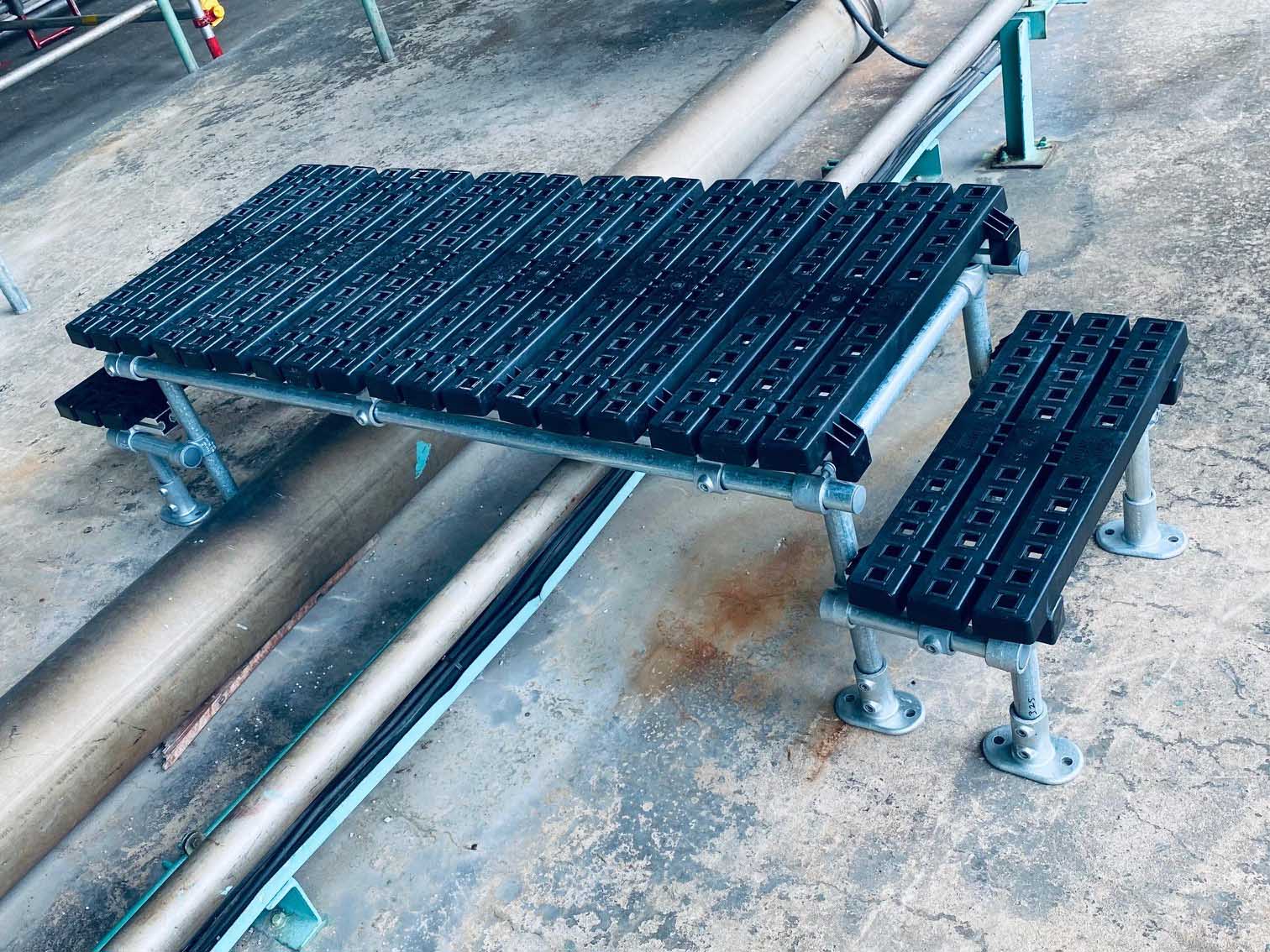

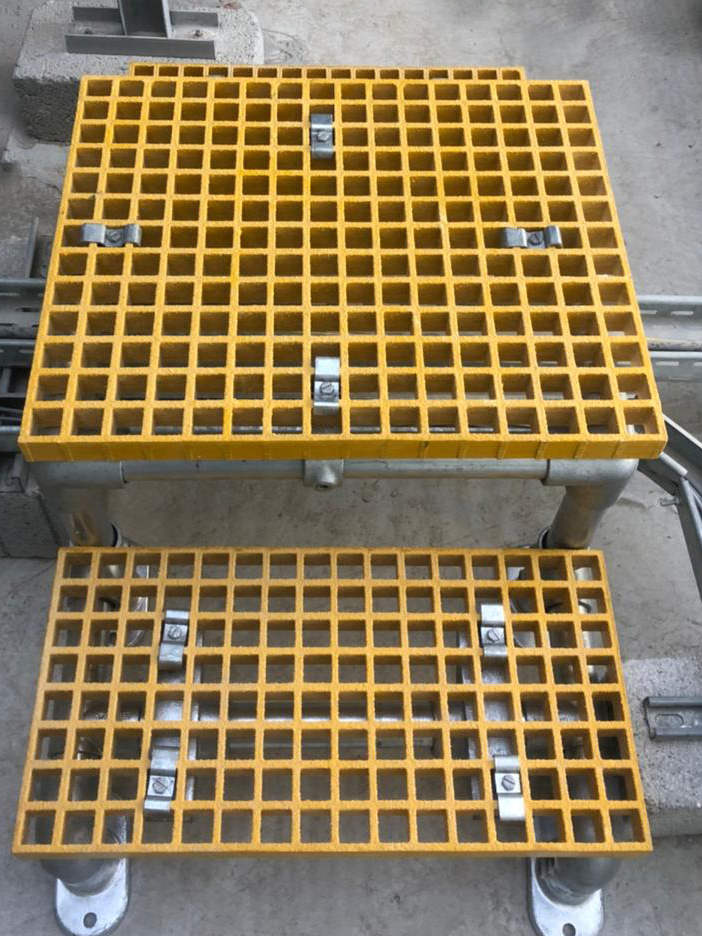

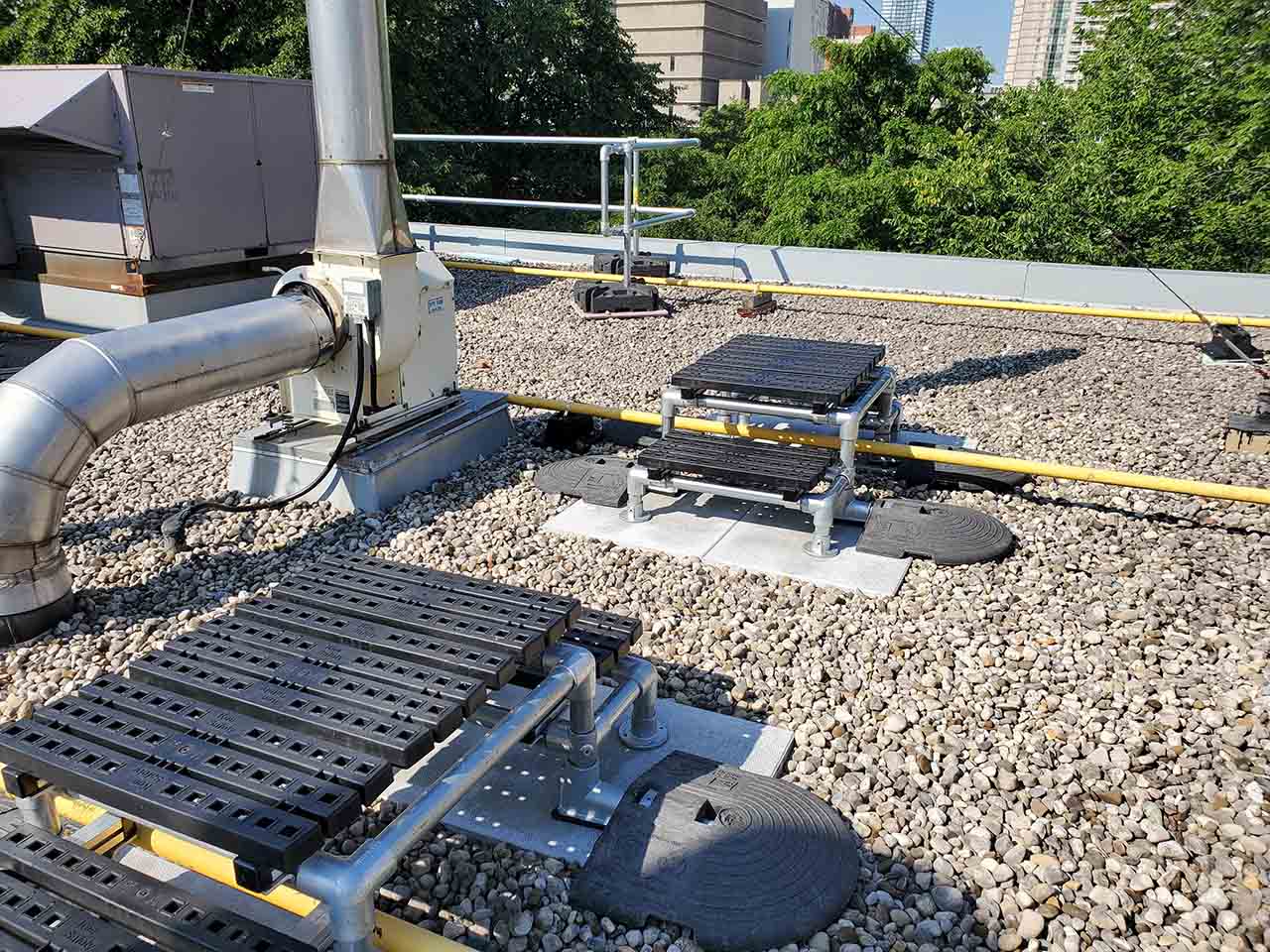

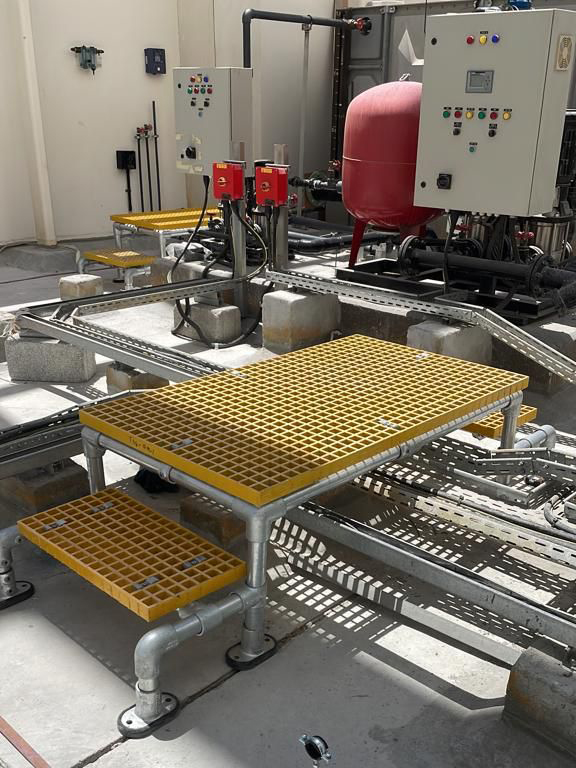

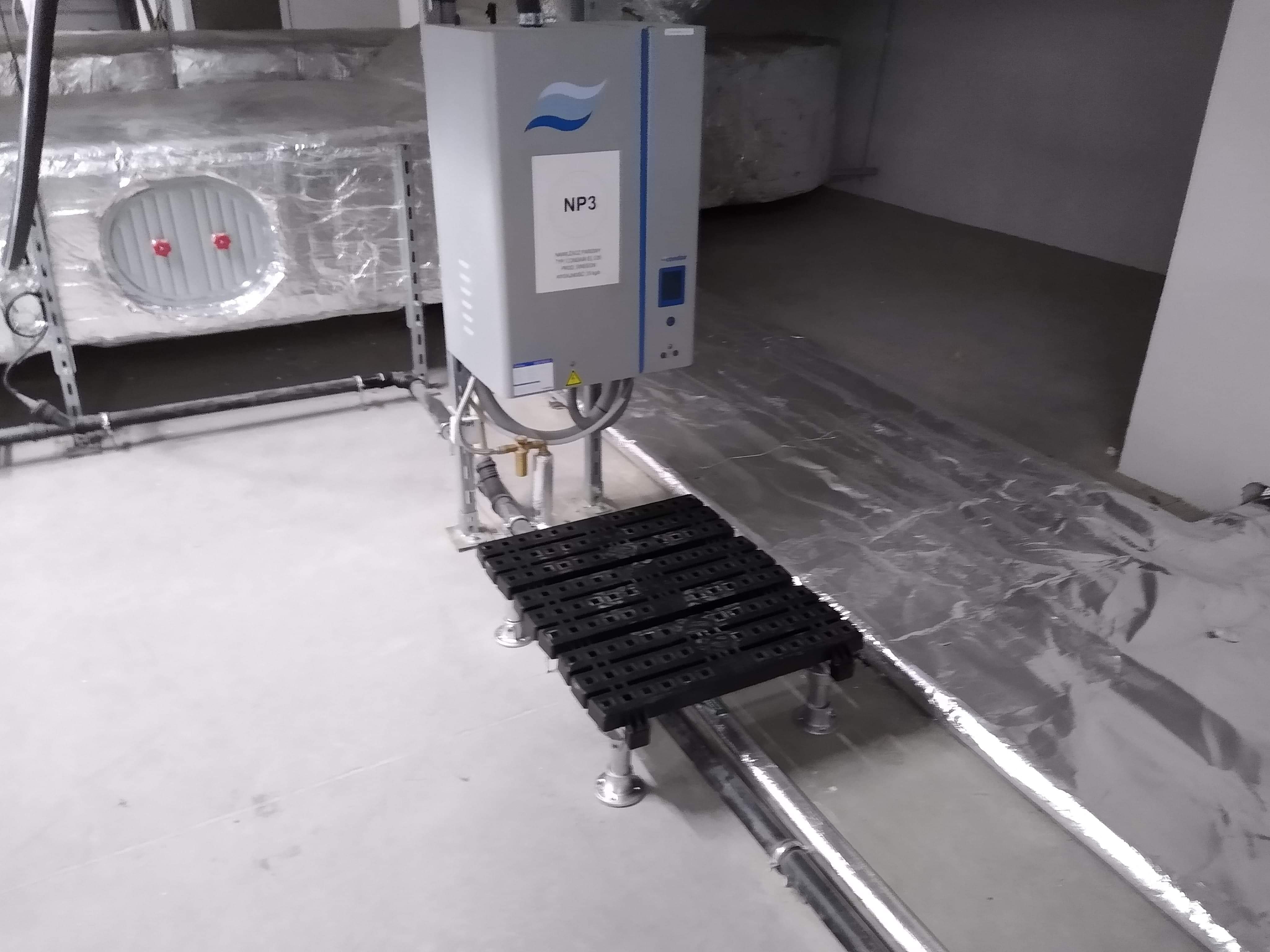

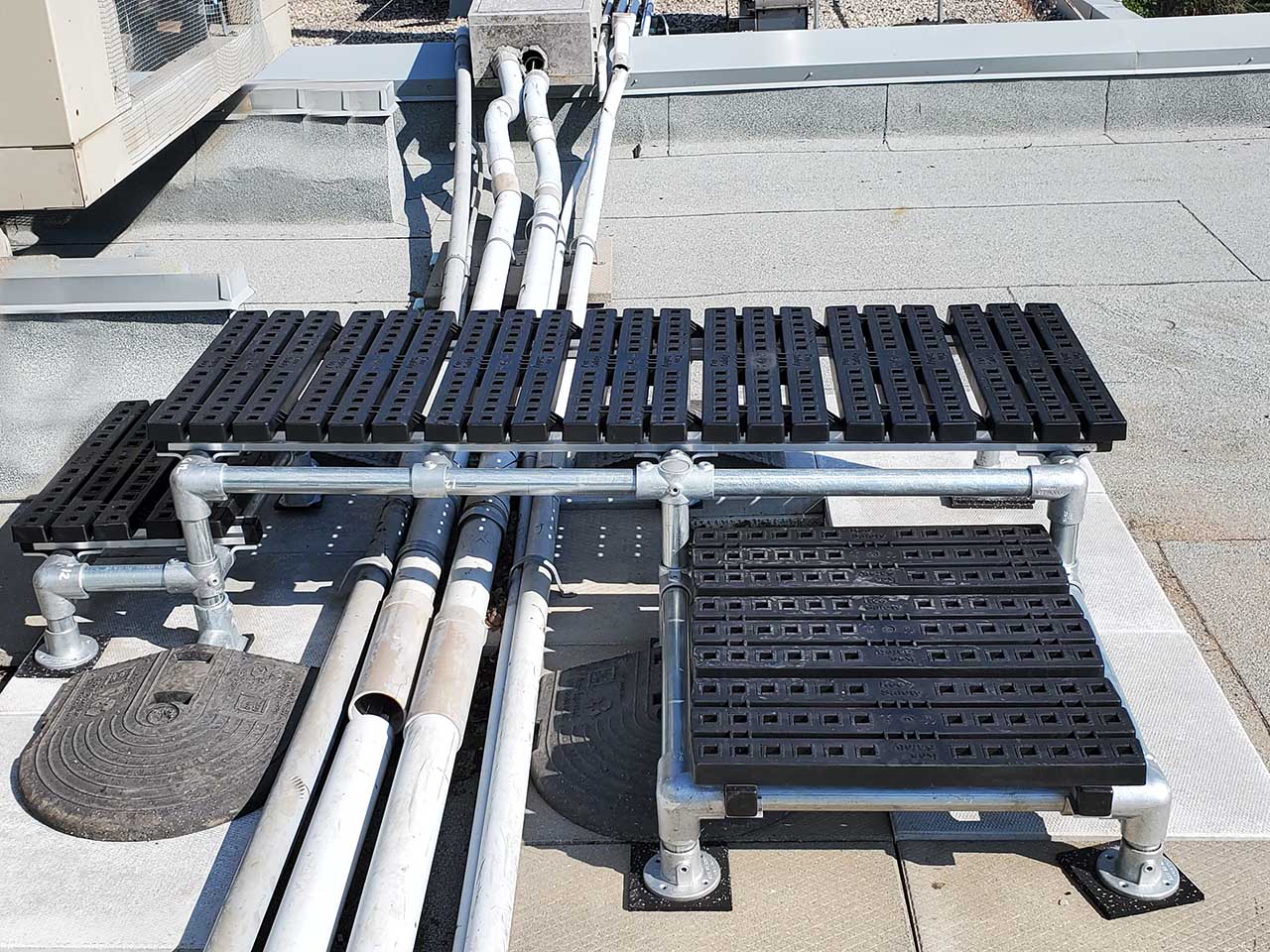

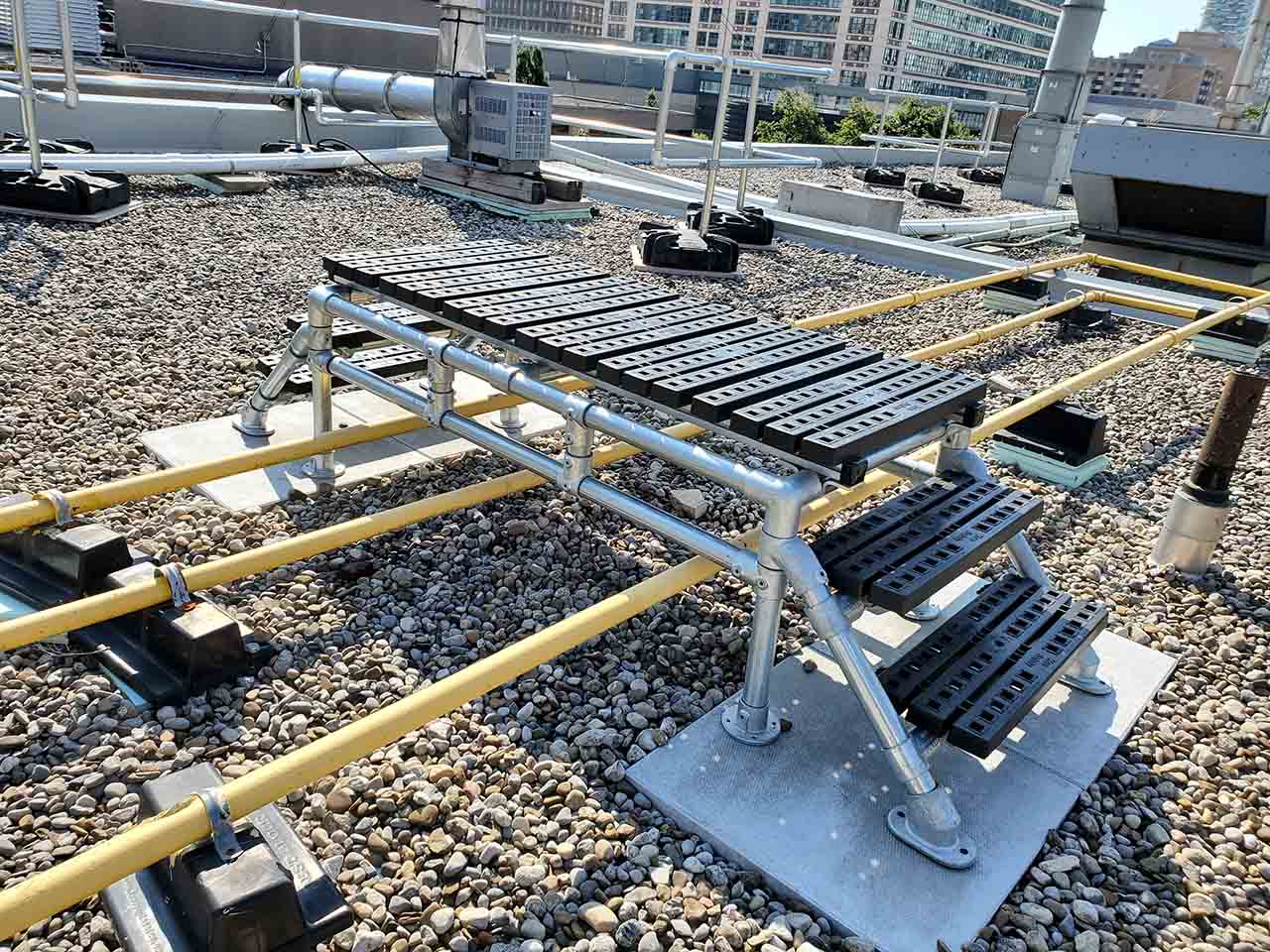

Kee^® Step Mini Step Over in Action

Standards

Kee® Step Mini Step Overs are designed to be compliant with EN 516 : 2016 Class 1-C, OSHA 1910.23(e)(1)(iii), OSHA 1910.25(b)(3), OSHA 1910.23(c)(2-4), and OSHA 1910.23(e)(1)(vi)

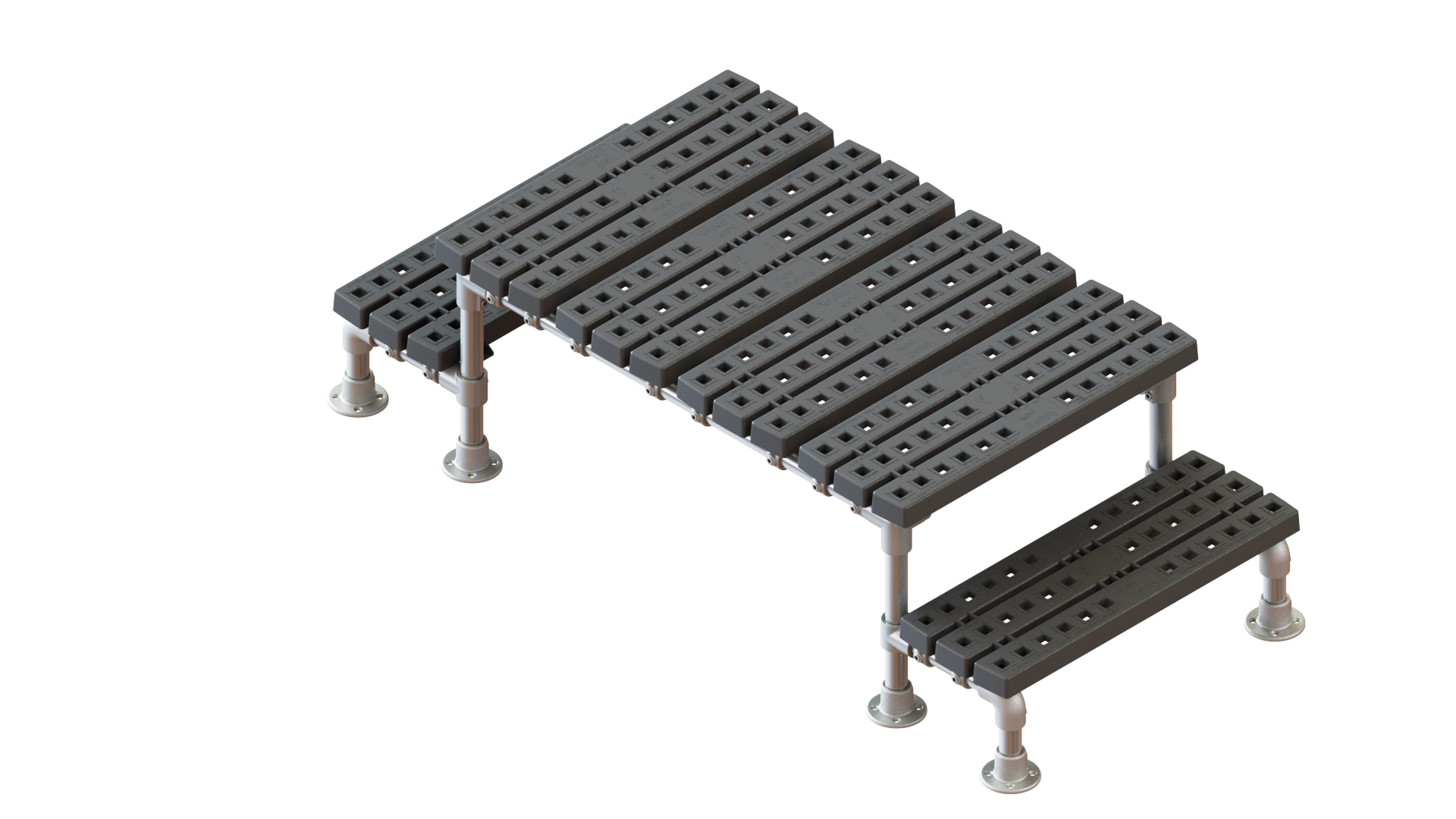

Kee^® Step Mini Module Kits

Available as kits, the Kee® Step Mini Step Overs are supplied as flat packed with full assembly instructions to allow quick and easy installation.

Two height clearance options, 200mm and 400mm
Three lengths available, 3, 4, and 5 tread options
Two fixing options, free standing and fixed

Two options are available, free standing, which the unit stands on two 26kg base weights, or fixed, which can be attached to suitable securing surfaces.
